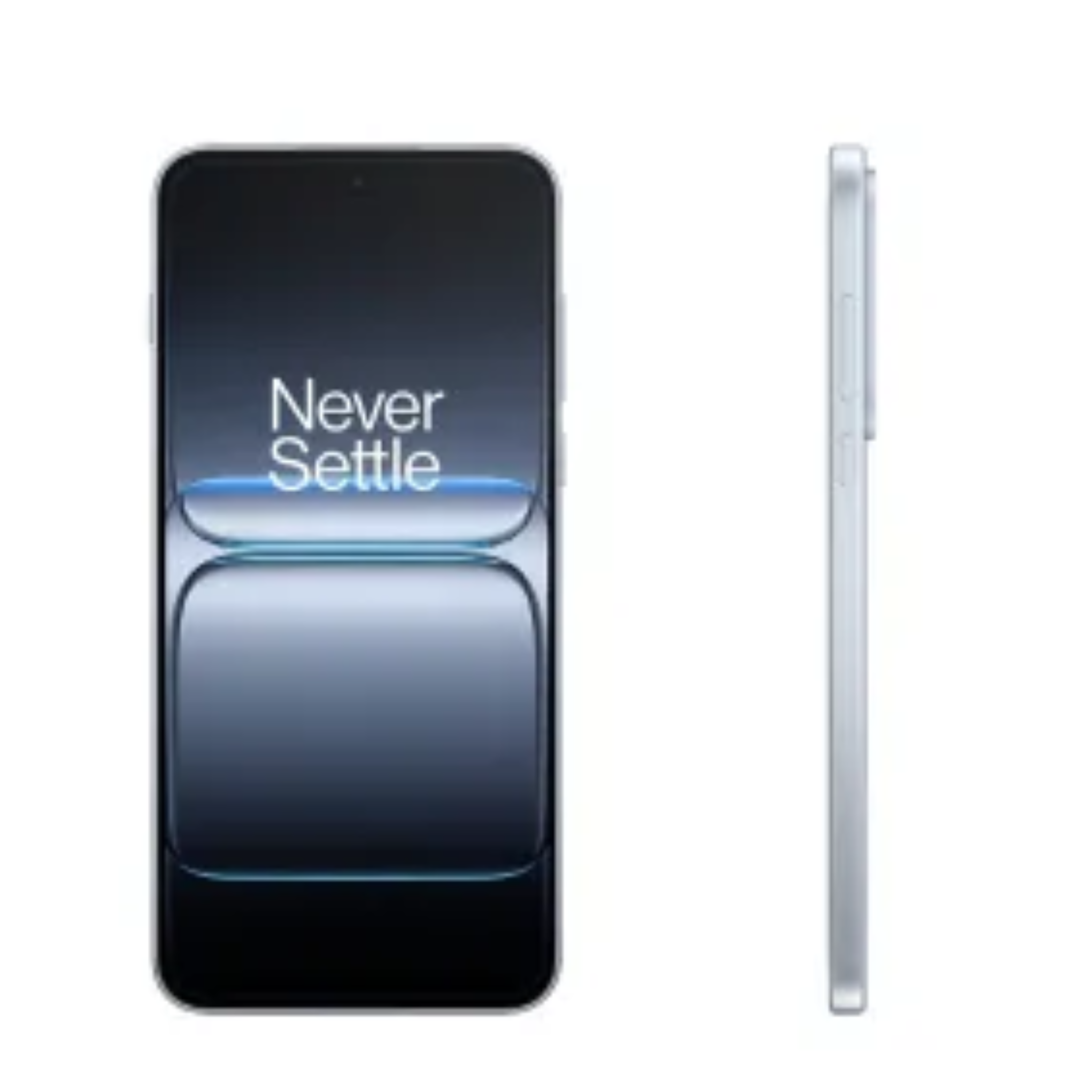

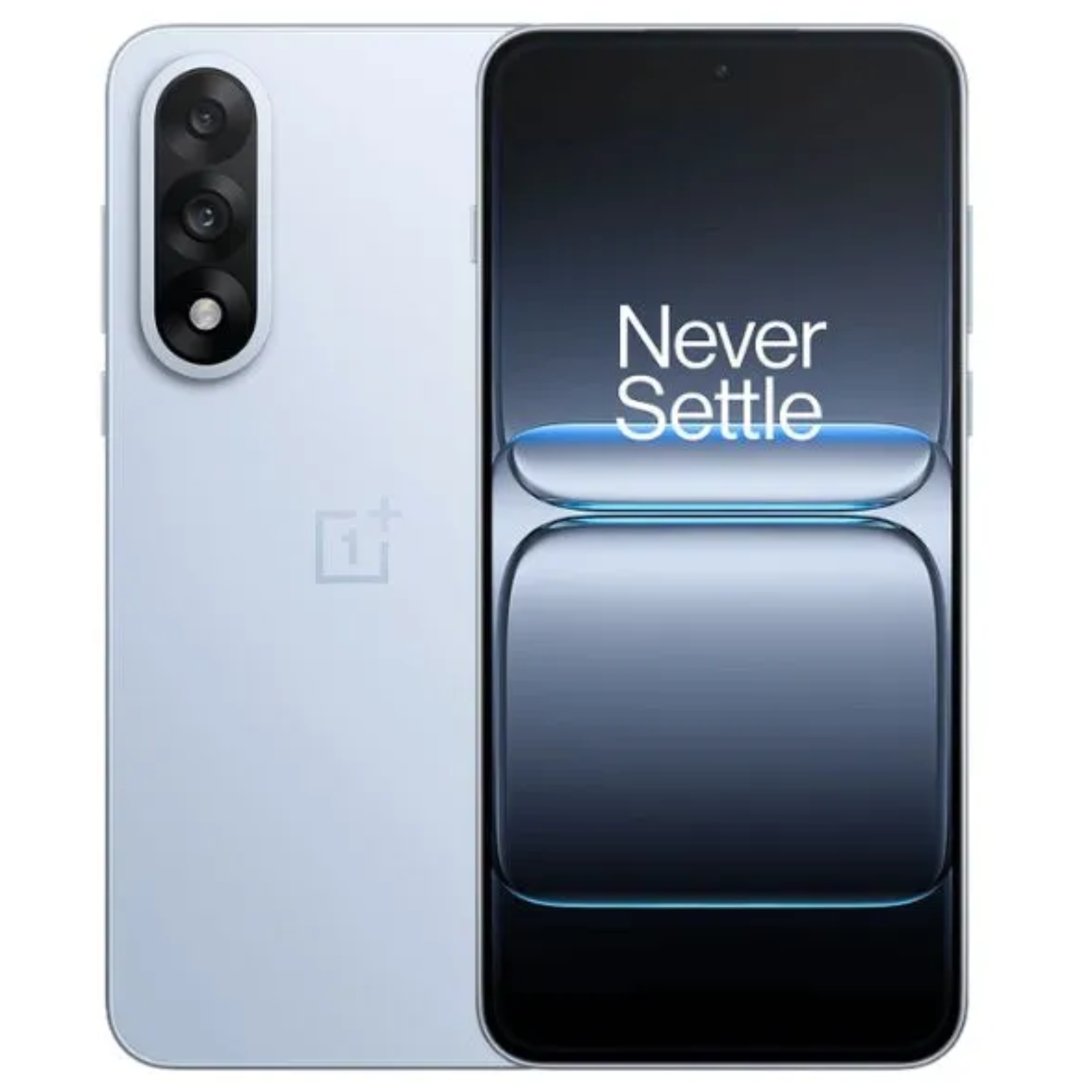

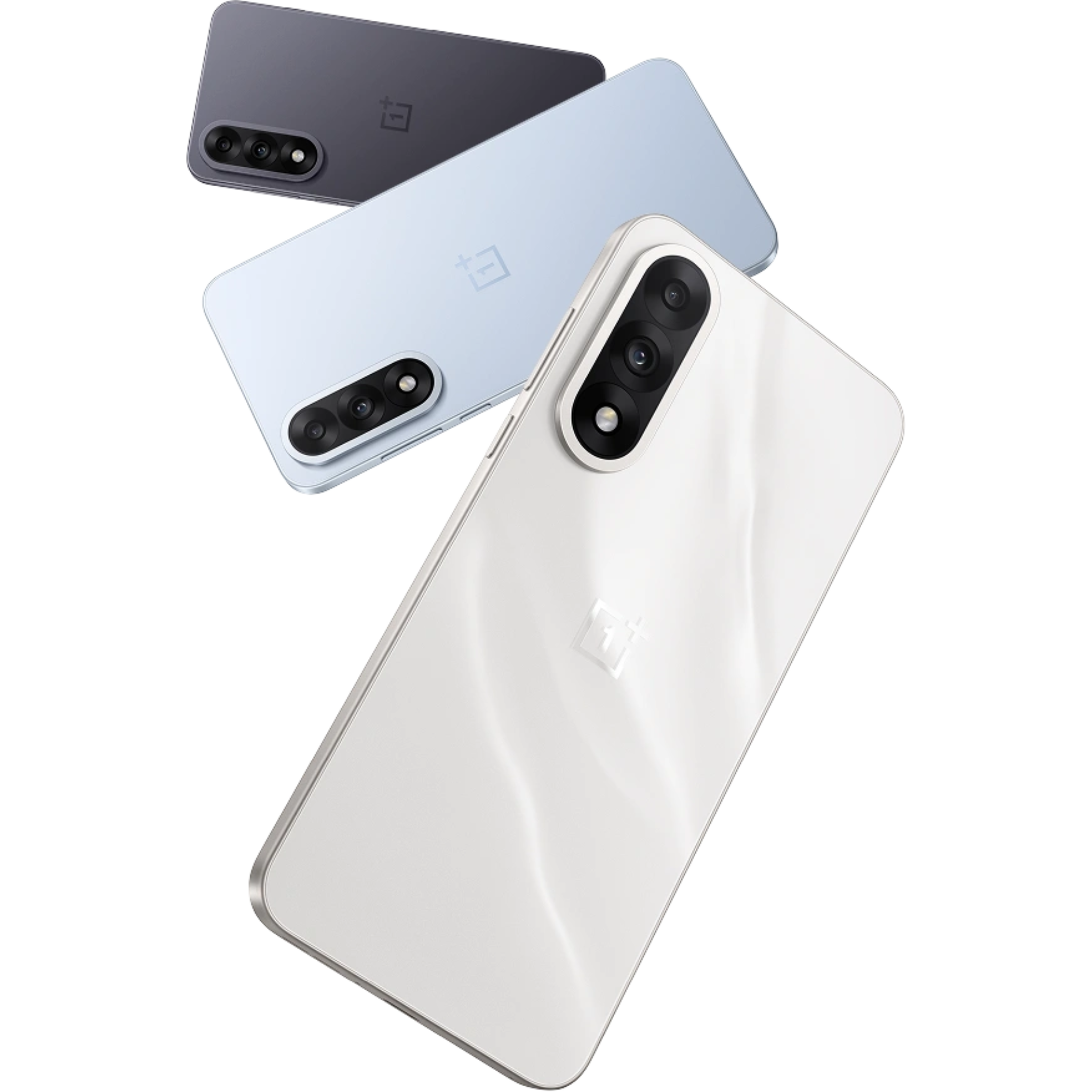

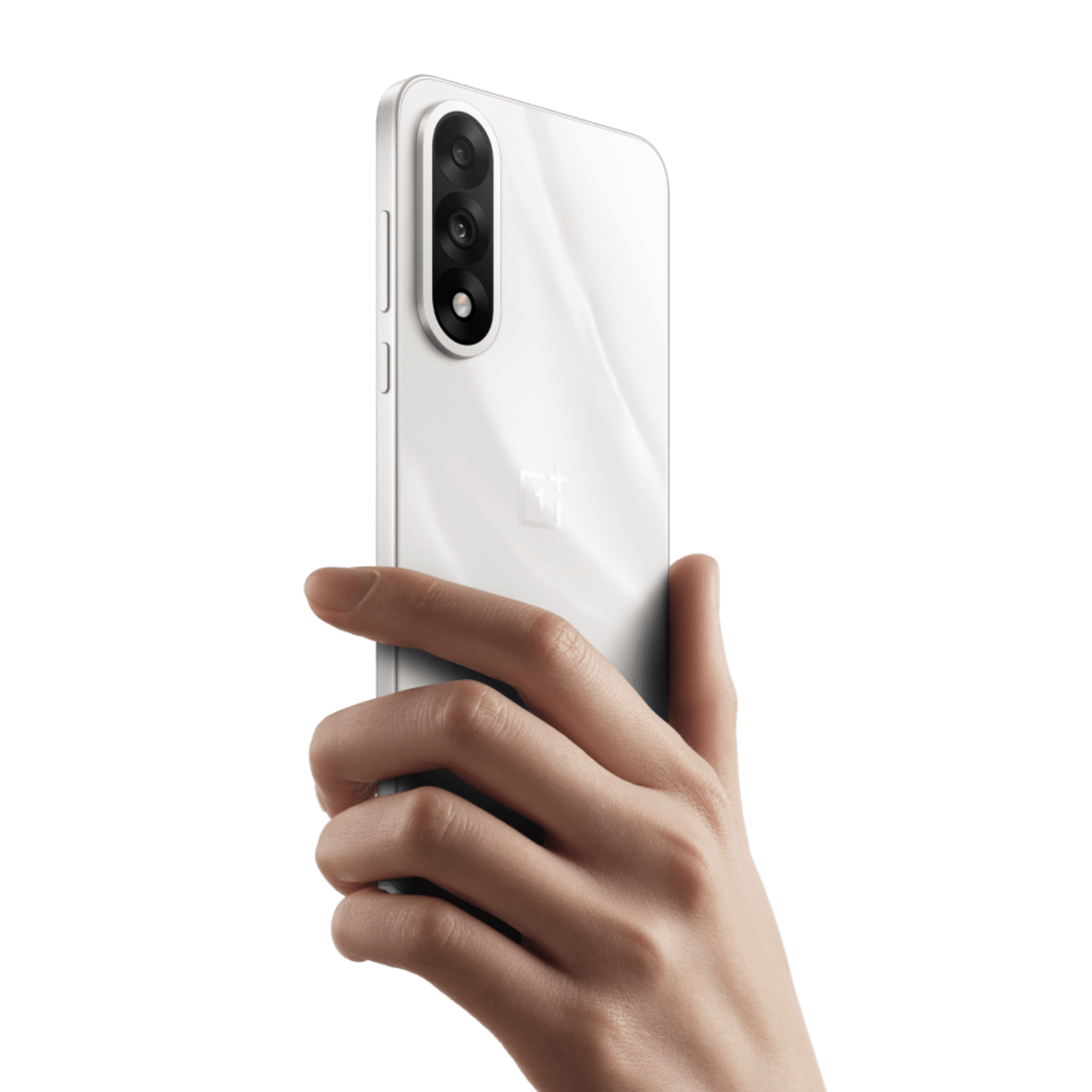

One Plus Nord 5 (12 + 512GB) Global Version - TRCSL Approved (Pre-Order)

Dimensions

·         Height: 163.41 mm

·         Width: 77.04 mm

·         Thickness: 8.1 mm

·         Weight: 211g



Display

Ø  Parameters

·         Size: 6.83" (measured diagonally from corner to corner)

·         Resolution: 1.5K (FHD+), 2800 x 1272

·         Pixel density: 450 ppi

·         Aspect Ratio: 19.8:9

·         Screen-to-body Ratio: 93.6%

·         Refresh Rate: Up to 144Hz (60/90/120/144Hz)

·         Panel Type: Swift AMOLED with Ultra HDR support

·         Adjustable / Full-screen (HBM) / Peak Brightness: 800 / 1400 / 1800 nits

·         Color: 10-bit (1.07 billion colors)

·         Support sRGB, DCI-P3

·         100% DCI-P3

·         Touch Response (Instantaneous): Up to 3000 Hz

·         Eye-care Pulse-Width Modulation: 3840 Hz

·         Sun-amp technology: Yes

·         Protective Material: Corning Gorilla Glass 7i (exclusively co-developed material)



Ø  Features

·         Nature tone display

·         Eye comfort

·         Bed time mode

·         Screen color mode

·         Color personalization

·         Color vision enhancement

·         Auto brightness

·         Manual brightness

·         Screen color temperature

·         Night Mode

·         Multi-brightness color calibration



 Performance

·         Operating System: OxygenOS 15.0 based on Android™ 15

·         CPU: Qualcomm® Snapdragon™ 8s Gen 3 Mobile Platform

·         GPU: Qualcomm® Adreno™ 735

·         RAM: 8 / 12GB LPDDR5X with OnePlus RAM-Vitalization

·         RAM Expansion: 4/6/8GB (8GB RAM), 4/8/12GB (12GB RAM)

·         Storage: 256/512GB UFS 3.1

·         Available configurations: 8GB + 256GB / 12GB + 512GB

·         Heat dissipation area: 32207mm²

·         Battery: 6,800 mAh (Single-cell non-removable)

·         80W SUPERVOOC Charging / 18W PD（55W PPS）

·         Reverse Charging: 5W (Wired only)

·         Bypass Charging: Yes

·         Haptics: X-axis motor

·         Certification: TÜV SÜD 72-month Fluency Rating A



Camera

Ø  Main Camera

·         Sensor: Sony LYT-700 CMOS (aka IMX906)

·         Sensor Size: 1/1.56"

·         Megapixels: 50

·         Pixel Size: 1.0 µm

·         Lens Quantity: 6P

·         Tri-axis Optical Image Stabilization: Yes

·         Tri-axis Electronic Image Stabilization: Yes

·         Focal Length: 24 mm equivalent

·         Aperture: ƒ/1.8

·         Field of View: 84°

·         Autofocus: Yes



Ø  Ultra-Wide

·         Sensor: OV08D10

·         Sensor size: 1/4"

·         Megapixels: 8

·         Pixel Size: 1.12 µm

·         Lens Quantity: 5P

·         Tri-axis Electronic Image Stabilization: Yes

·         Focal Length: 15 mm equivalent

·         Aperture: ƒ/2.2

·         Field of View: 116°

·         Autofocus: Yes

·         Macro: 3.5 cm



Ø  Flash

·         LED



Ø  Zoom

·         0.6-20x digital zoom



Ø  Video

·         4K video at 60/30 fps

·         1080p video at 60/30 fps

·         720p video at 30 fps

·         EIS/OIS video: 4K video at 60/30 fps, 1080p video at 60/30 fps (default), 720p video at 30 fps

·         Slo-mo video at 1080p at 120 fps, 720p at 240 fps

·         Time-lapse at 4K video at 30 fps, 1080p video at 30 fps

·         Digital zoom: Up to 18x

·         Dual-view video at 1080p, 30 fps

·         Video zoom: 4K video at 60/30 fps, 1080p video at 60/30 fps, 720p video at   30 fps

·         Cinematic: 3840x1644 at 30 fps

·         Video Editor



Ø  Features

·         Photo, Video, Portrait, Nightscape, Pro Mode, Panorama, Cinematic, Slo-mo, Long Exposure, Dual-view Video, Time-lapse, Text-scanner, Hi-Res Mode, Tilt-shift, Google Lens.

·         Front Camera

·         Sensor: SAMSUNG ISOCELL JN5

·         Sensor Size: 1/2.75"

·         Megapixels: 50

·         Lens Quantity: 5P

·         Pixel Size: 0.64 µm

·         Tri-axis Electronic Image Stabilization: Yes

·         Focal Length: 21 mm equivalent

·         Autofocus: Yes

·         Aperture: ƒ/2.0

·         Field of View: 90°



Ø  Video

·         4K video at 60/30 fps, 1080p video at 60/30 fps, 720p video at 30 fps (beautification on 1080p 30 fps or 720p 30 fps only)

·         Steady Mode: 1080p video at 60 fps



Ø  Features

·         Face Unlock, Photo, Video, Portrait, Nightscape Selfie, Panorama Selfie, Dual-view Video, Time-lapse. Slo-Mo, Retouch, Screen Flash



Connectivity

Ø  eSIM

·         No



Ø  Dual SIM

·         Yes (with Dual SIM Dual Active support)



Ø  LTE/LTE-A

·         4×4 MIMO, supports up to DL Cat 19/UL Cat 18 (1600Mbps/200Mbps), depending on carrier support



Ø  LTE

·         GSM: 850/900/1800/1900MHz

·         WCDMA: Bands 1/2/4/5/6/8/19

·         LTE-FDD: Bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28/32/66

·         LTE-TDD: Bands 38/39/40/41/42

·         5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n38/n40/n41/n66/n75/n77/n78

·         *Network connectivity may vary depending on carrier’s network and related service deployment.



Ø  Wi-Fi

·         2x2 MIMO, Support 2.4G/5G 160MHz, Wi-Fi 6, Support WiFi 802.11 a/b/g/n/ac/ax



Ø  Bluetooth

·         Bluetooth 5.4, support aptX, aptX HD, LDAC, AAC, SBC, LHDC 5.0



Ø  NFC

·         NFC enabled



Ø  Positioning

·         GPS, GLONASS, BDS, Galileo, QZSS



Sensors

·         In-display Fingerprint Sensor

·         Accelerometer

·         M-sensor Electronic Compass

·         Gyroscope

·         Ambient Light Sensor

·         Proximity Sensor

·         Sensor Core

·         Infrared blaster



Ports

·         USB 2.0, Type-C

·         Support standard Type-C earphone

·         Dual nano-SIM slot



Buttons

·         Gestures and on-screen navigation support

·         Plus, Key



Audio

·         Dual Stereo Speakers

·         Noise cancellation support



Multimedia

·         Audio Supported Formats

·         Playback: AAC, AMR, MIDI, MP3, OGG, WAV, FLAC, APE, WMA

·         Recording: WAV, AAC, MP3

·         HDR10/HDR10+

·         Video Supported Formats

·         Playback: 3GP, MP4, MKV, HEVC, AVI, AVC, VP9, VP8, AV1, FLV, MOV

·         Recording: MP4

·         Image Supported Formats

·         Playback: JPEG, PNG, AVIF, WEBP, GIF, BMP, WBMP, HEIF, DNG, ICO

·         Output: JPEG, HEIF



What In the Box

·         OnePlus Nord 5

·         Type-A to C Cable

·         Quick Start Guide

·         Safety Information

·         Screen Protector (pre-applied)

·         SIM Tray Ejector

* TRC Approved

*Two-Year Hardware Warranty and Software Warranty
